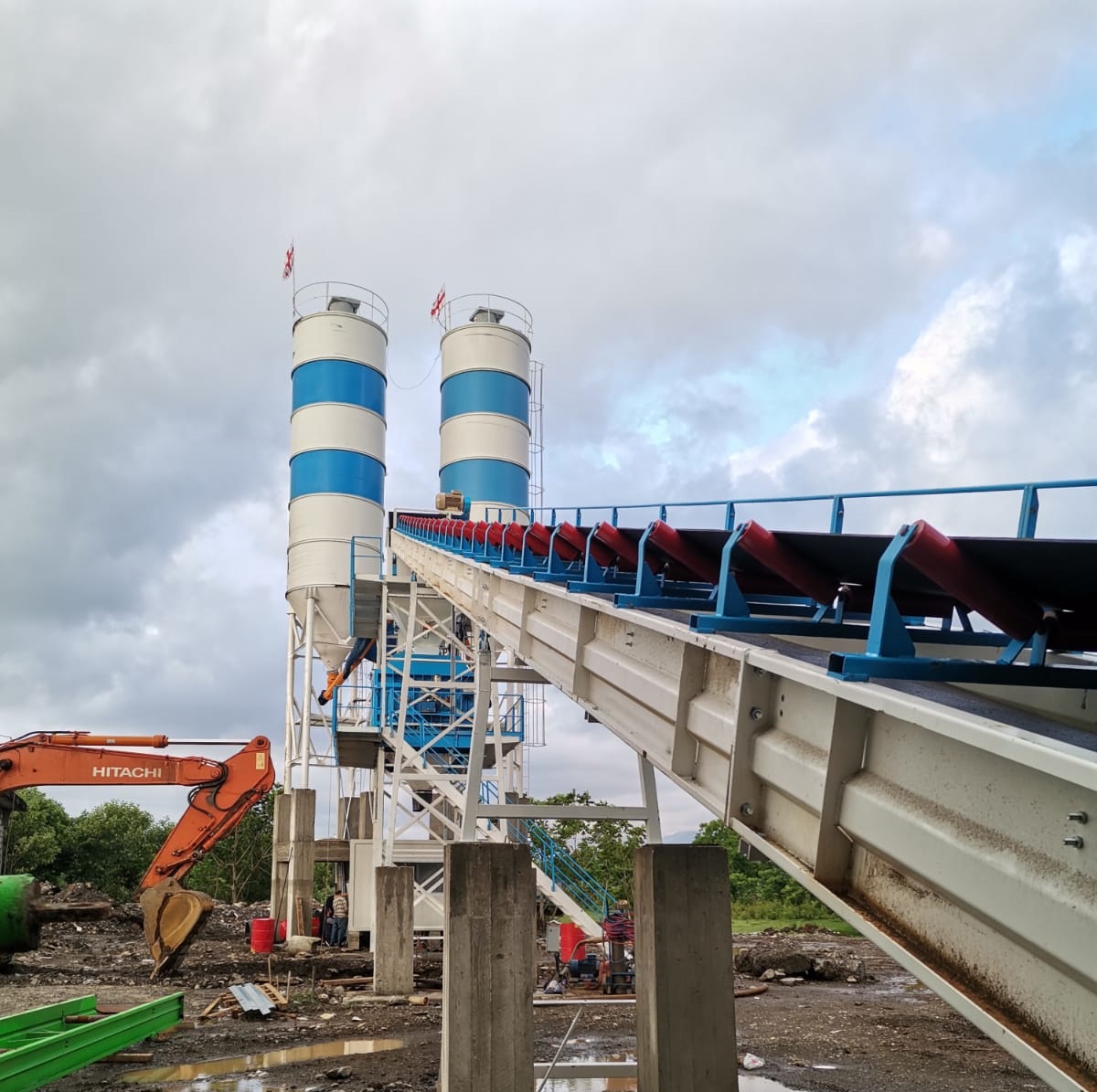

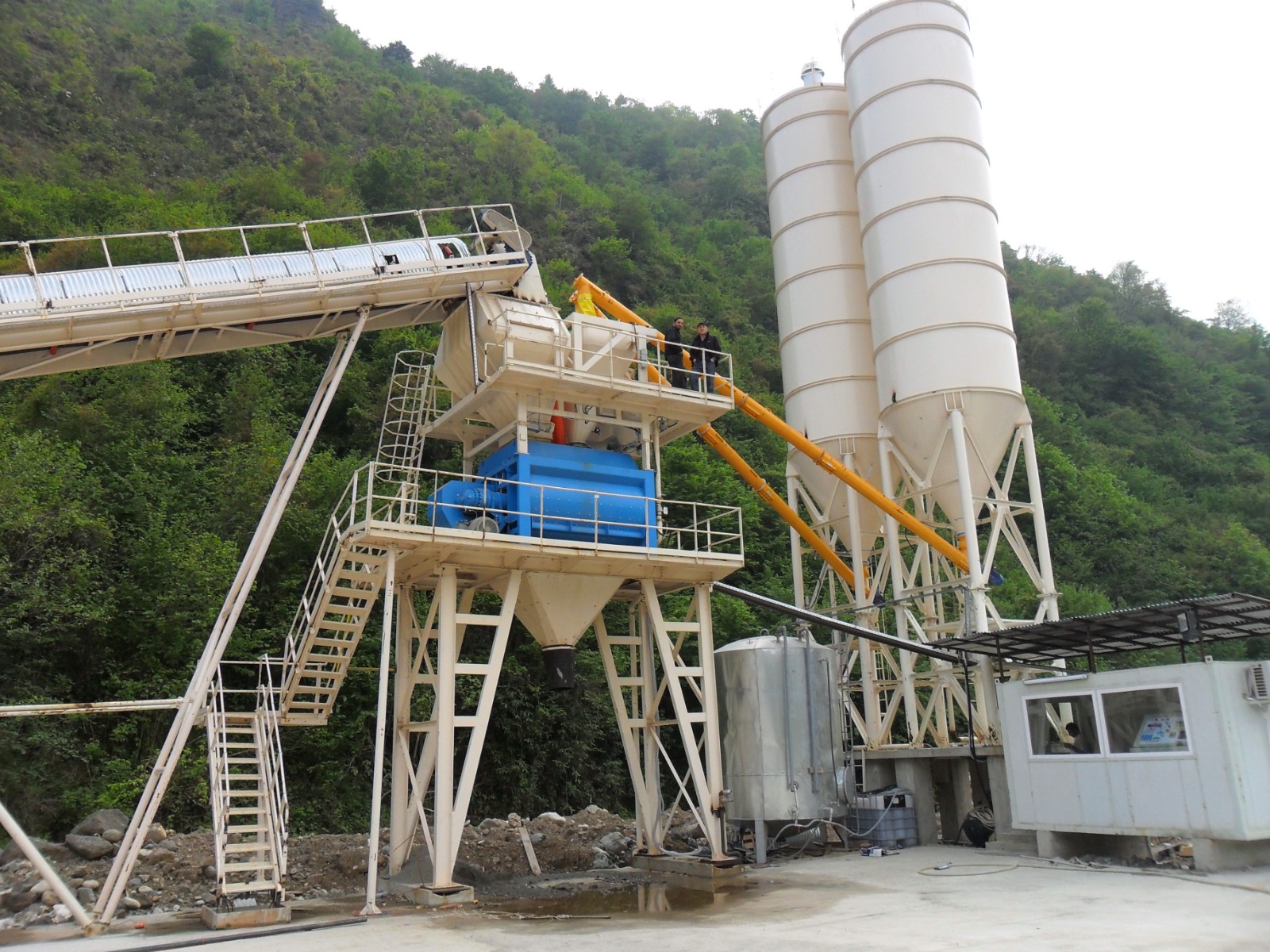

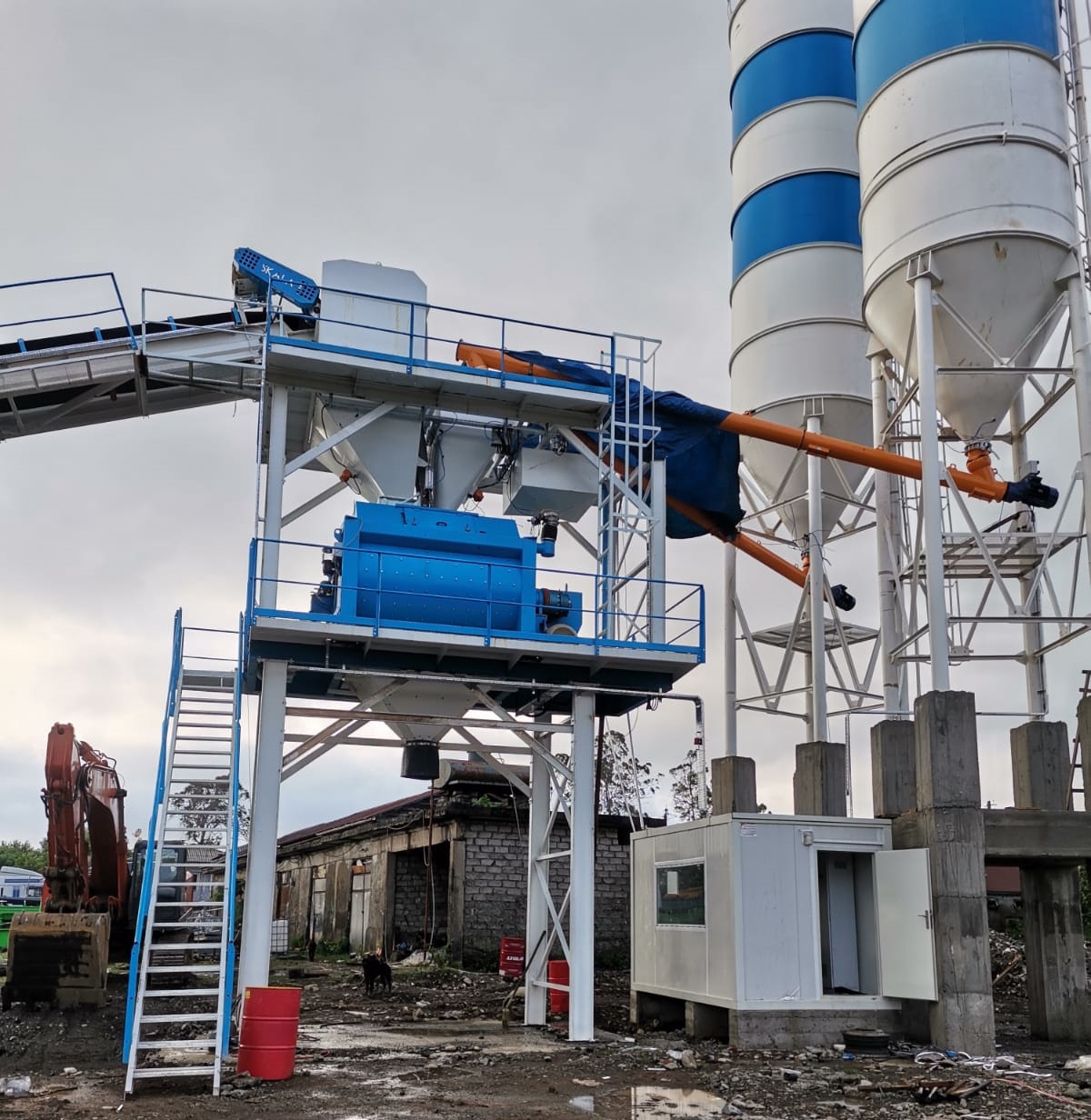

Stationary Concrete Batching Plant

It is a high performance stationary concrete batching plant with modular dimensions. It is designed for maximum capacity, flexibility, efficiency and reliability in the production of all kinds of high quality mass concrete. Its compatibility with mixers of different types and capacities makes these facilities reconfigurable for any need. It is convenient to transport with a container or a tarpaulin truck and thus provides economic advantages such as easy installation. It has the highest possible degree of automation. Compared to other alternatives, it has a technology that reduces the capacity of large facilities to much more compact dimensions.

You can contact us for new and/or used (second hand) stationary concrete batching plant models you need.

DISTINCTIVE FEATURES :

100 m3 and above can be transported by 2 containers or trucks, and capacities below 100m3 can be transported by 1 container or truck.
The main chassis is foldable in itself to ensure fast assembly and disassembly. The first concrete can be produced in 4-5 days.
Minimizes operating costs thanks to the minimum need for foundation concrete in the area where it will be installed,
Robust and durable main chassis; It provides precise weighing by minimizing vibrations in long-lasting operation and measurements.

OPTIONAL ITEMS :

🔸 Triper belt aggregate feeding system

🔸 Cement silo

🔸 Steel construction curtain wall

🔸 Insulated or non-insulated coating according to climatic conditions

🔸Cooling systems (Chiller)

🔸Heating systems (Steam Generator, Resistance System)

SPECIFICATIONS	FIX 60	FIX 80	FIX 100	FIX 120
Hourly Production Capacity	50 - 60 m³/ h	75 - 80 m³/ h	90-100 m³/h	110-120 m³/h
Mixer Capacity	1,0 m³ (1500/1000 L)	1,5 m³ (2250/1500 L)	2,0 m³ (3000/2000 L)	3,0 m³ (4500/3000 L)
Mixer Type	Single-shaft	Single-shaft	Twin-shaft	Twin-shaft
Mixer Motor Power	1 x 37 kW	1 x 45 kW	2x37 kW	2x55 kW
Aggregate Bunker Capacity	46 m³ (4 x 11,5 m³)	46 m³ (4 x 11,5 m³)	100 m³ (4 x 25 m³)	120 m³ (4 x 30 m³)
Aggregate Weighing Belt/Hopper	0-2200 kg	0-3300 kg	10x1000x11.150 mm	10x1000x11.150 mm
Conveyor Belt	10x800x11.500 mm	10x800x11.500 mm	10x1000x13.500 mm	10x1000x13.500 mm
Cement Weighing Hopper	600 kg	750 kg	1200 kg	1800 kg
Water Weighing Hopper	300 L	400 L	700 L	1000 L
Additive Weighing Hopper	50 L	50 L	50 L	50 L
Automation System	Schneider Siemens	Schneider Siemens	Schneider Siemens	Schneider Siemens
Total Motor Power	61 kW	73 kW	126 kW	159 kW
