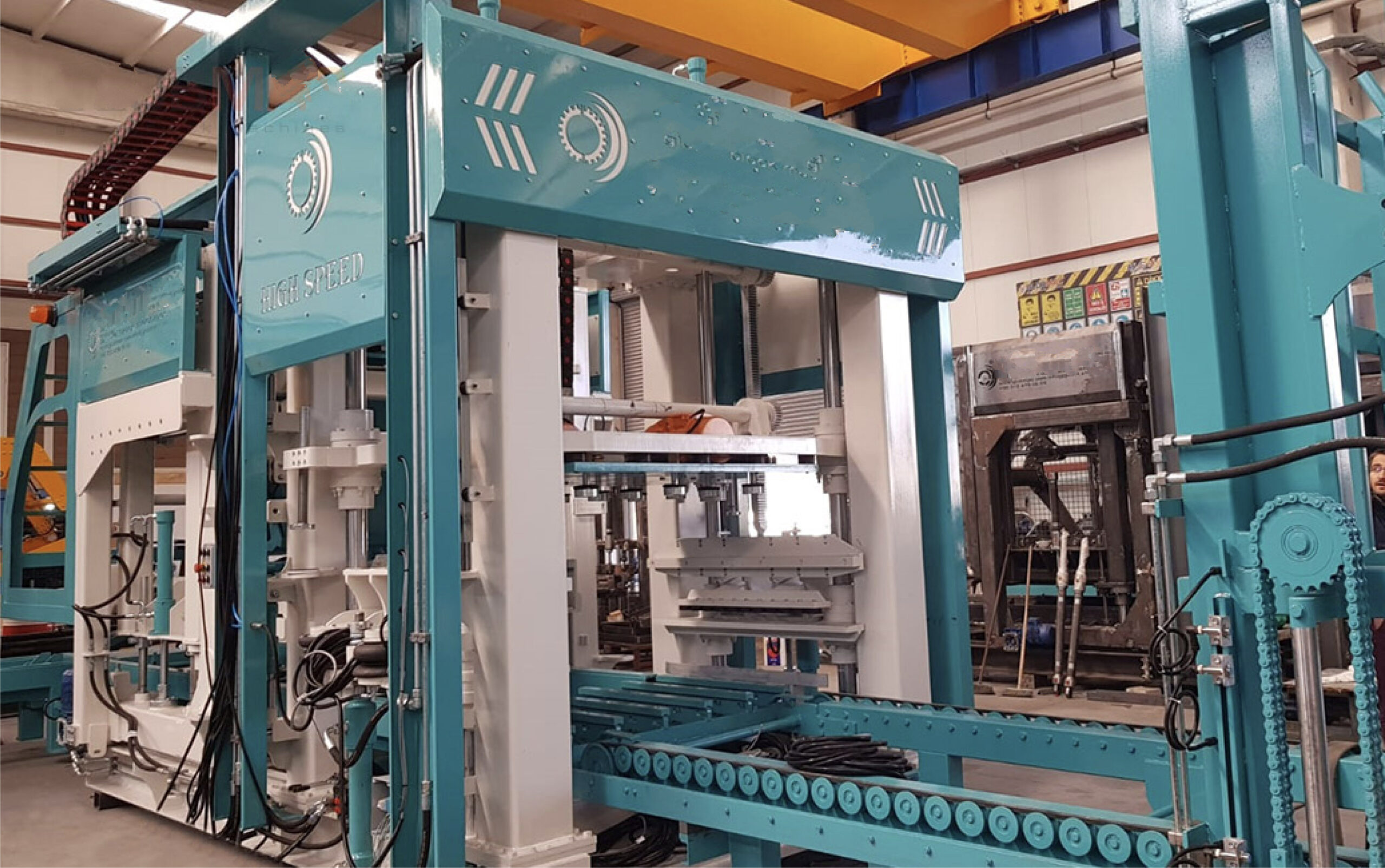

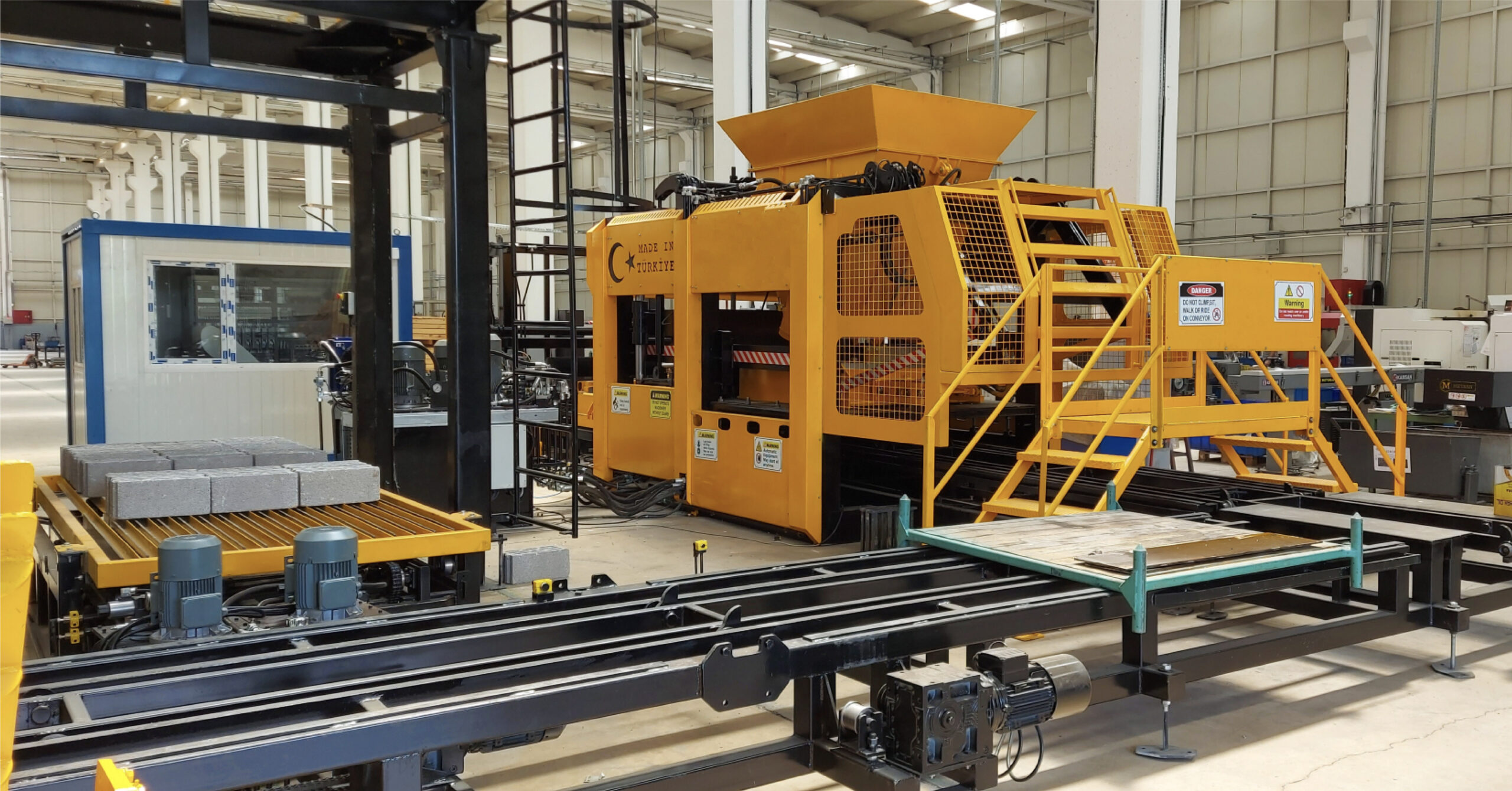

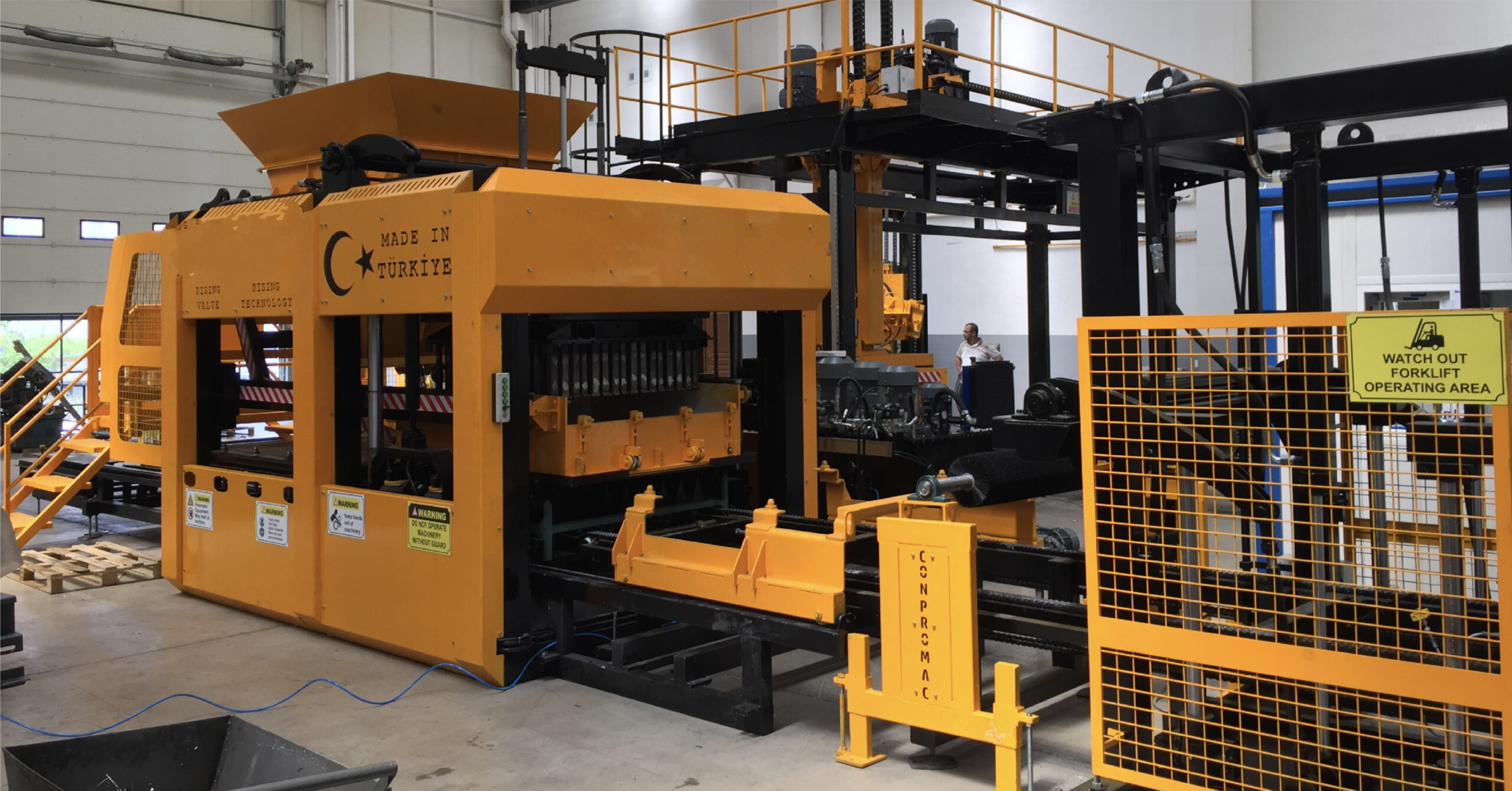

Single Hopper - Concrete Block And Paver Making Machine

It cannot give a surface layer to the paving stones, so it is only suitable for concrete block production. It can be controlled manually or semi-automatically and has a single mortar hopper and stacking working principle. It is possible to produce all prefabricated concrete elements such as hollow blocks, which work on the basis of hydraulic pressure and mechanical vibration.

The stacking robot, which allows the pallets of the products coming out of the machine to be stacked on top of each other and taken to the forklift, works both manually and automatically. The concrete mixer and belt conveyor required for the concrete preparation unit can be optionally offered to the machine.

You can contact us for new and/or used (second hand) concrete briquette machine models that you need.

DISTINCTIVE FEATURES

With its integrated construction structure, the first product can be produced in 2-3 days.
Minimizes operating costs thanks to the minimum need for foundation concrete in the area where it will be installed,
Robust and durable main chassis; It provides precise weighing by minimizing vibrations in long-lasting operation and measurements.

OPTIONAL ITEMS

🔸 Electrical picking robot

🔸 Stacking rack system with elevator

🔸 Stretch wrapping machine

🔸 Product picking forklift

SPECIFICATIONS	SB-4	SB-8	SB-10	SB-14
Production Pallet Capacity	110 - 120 pallet/h	110 - 120 pallet/h	110 - 120 pallet/h	140 - 150 pallet/h
Control	Manuel	Manuel - PLC	PLC	PLC
Easy Mould Change	-	Automatic	Automatic	Automatic
Hydraulic Oil Capacity	180 L	200 L	250 L	900 L
Bottom Vibration	2 x 4 Kw	2 x 4 Kw	4 x 4 Kw	6 x 5,5 Kw
Total Power Used (Manuel)	44 Kw	61 Kw	79 Kw
Total Power Used (As Semi Automatic)	65 Kw	82 Kw	100 Kw	125 Kw
Vibration Power	10 tons	20 tons	20 tons	25 tons
Wooden Pallet Used (Manuel)	900x600x30 mm	920x920x35 mm	1100x980x40 mm	-
Wooden Pallet Used (Automatic)	1000x600x30 mm	980x1000x35 mm	1200x980x40 mm	1450x980x40 mm
Mixer Capacity	0,25 m3	0,5 m3	0,5 m3	0,75 m3
Max. Product Height	30 cm	30 cm	30 cm	30 cm
Min.Product Height	17 cm	17 cm	17 cm	17 cm
Machine Dimensions	1550x2750X2600 mm	1550x3260x2640 mm	1920x3230x2640 mm	2700x4800x3200 mm
Output Product Capacity (Hollow Block)	6500 (10x40x20) 4500 (15x40x20) 3500 (20x40x20)	13000 (10x40x20) 9000(15x40x20) 7500 (20x40x20)	16500 (10x40x20) 11000(15x40x20) 9000 (20x40x20)	25000 (10x40x20) 18000(15x40x20) 14000 (20x40x20)
