Double Hopper - Concrete Block And Paver Making Machine

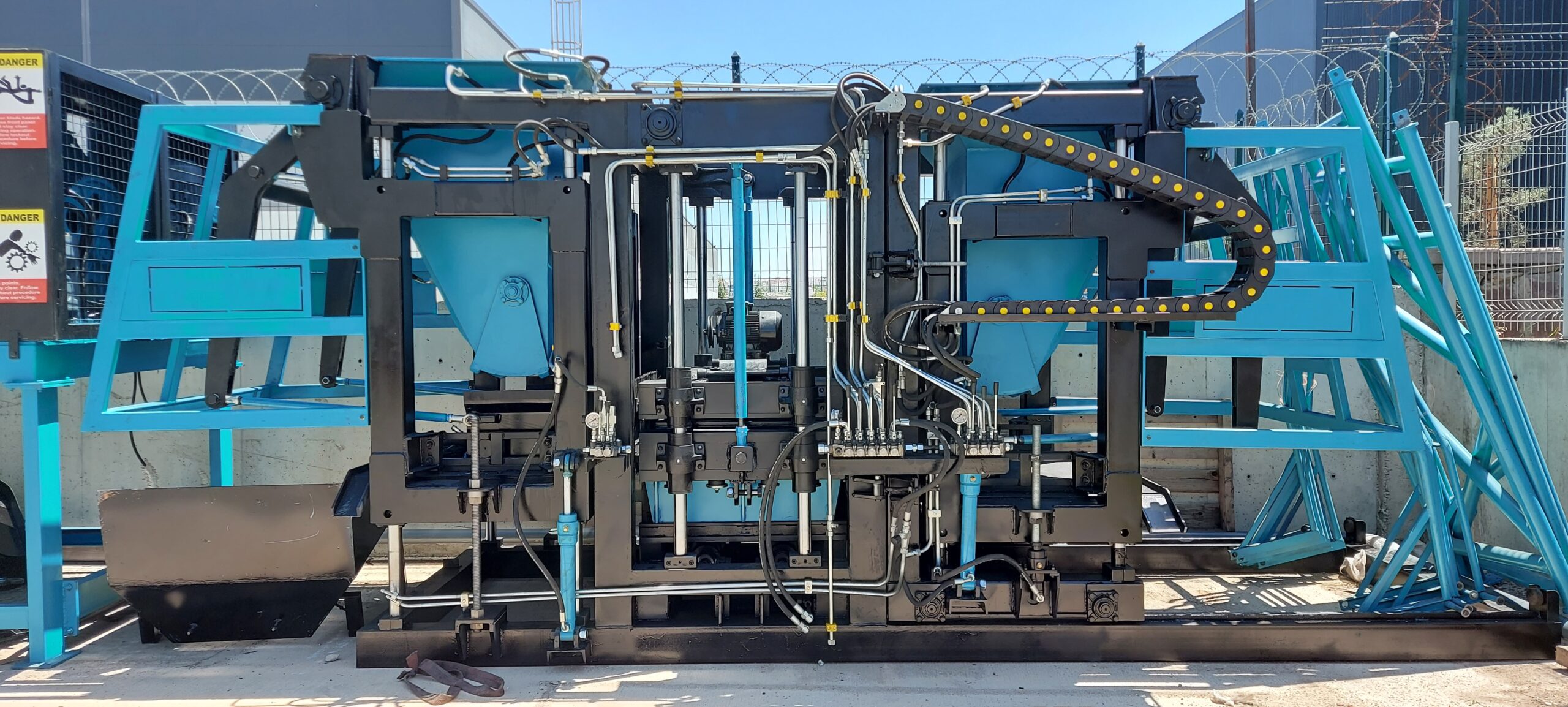

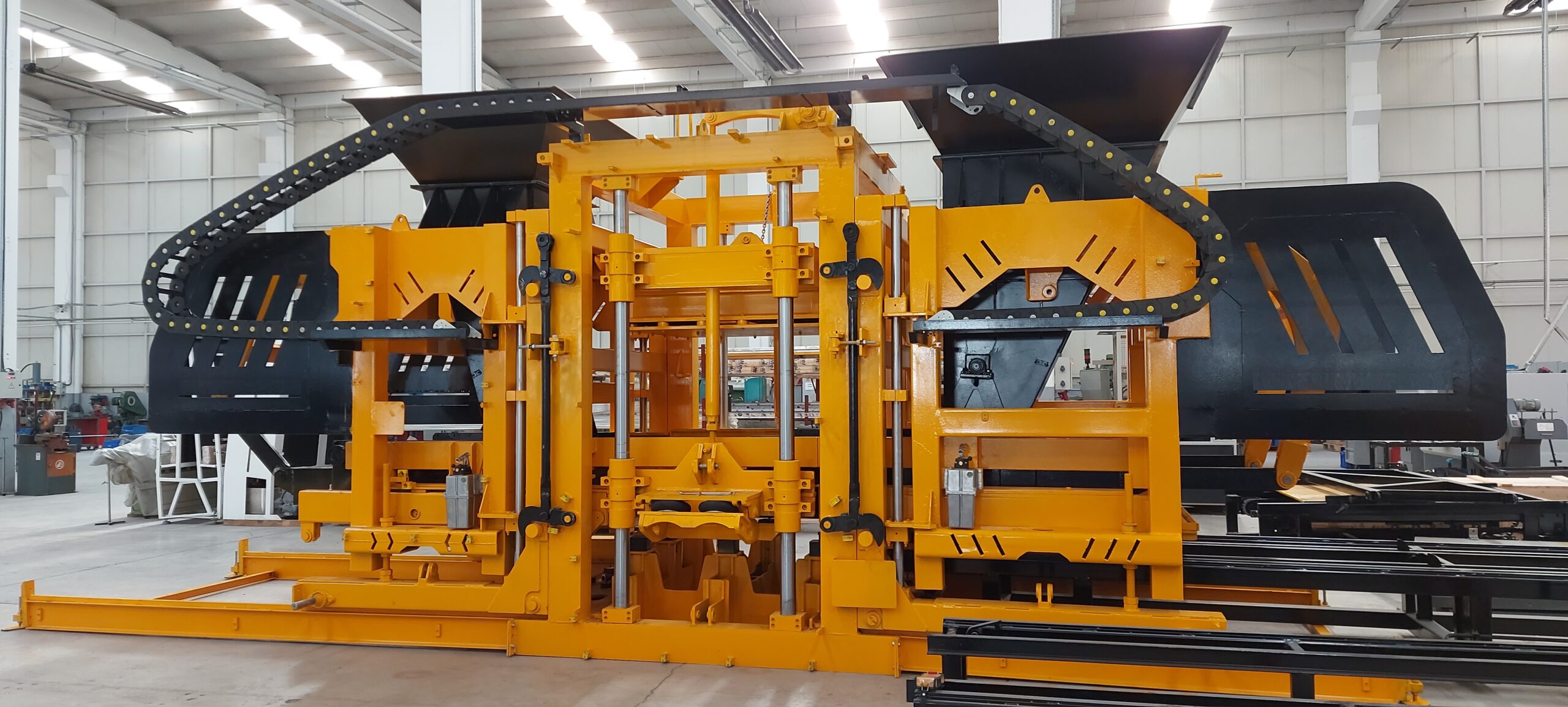

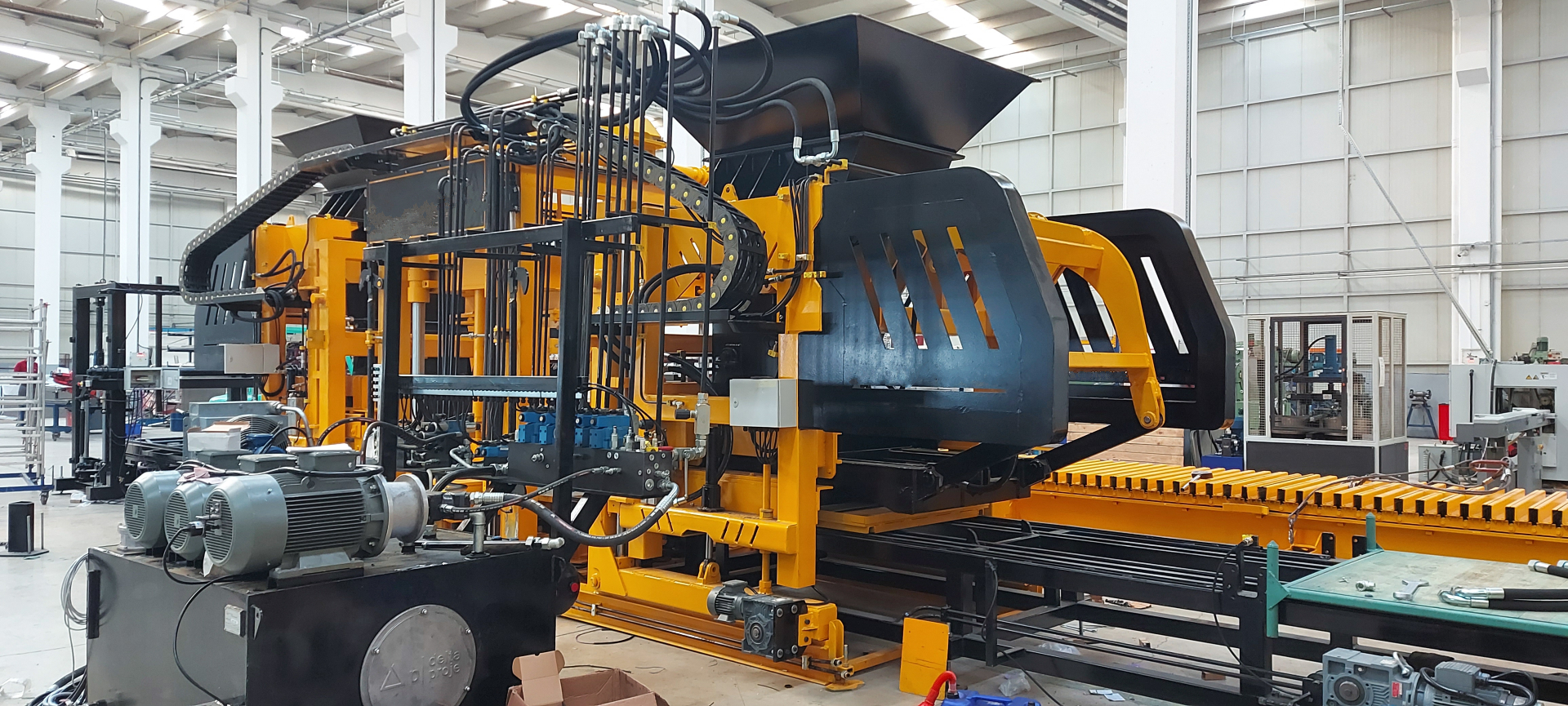

It is possible to produce prefabricated concrete elements such as locked or unlocked paving stones, grass stones, concrete curbs, rain gutter stones, briquettes and hollow blocks, which work on the basis of hydraulic pressure and mechanical vibration. The machine, which is controlled by manual and PLC automation system, is manufactured with two mortar hoppers and a stacking robot.

The stacking robot, which allows the pallets of the products coming out of the machine to be stacked on top of each other and taken to the forklift, works both manually and automatically. The concrete mixer and belt conveyor required for the concrete preparation unit can be optionally offered to the machine.

The belt conveyor, which transmits the mortar from the mixer to the machine bunkers, has the feature of transferring the mortar to both bunkers of the machine thanks to its rotating mechanism driven by a geared motor.

You can contact us for new and/or used (second hand) concrete paving and briquette machine models.

DISTINCTIVE FEATURES

With its integrated construction structure, the first product can be produced in 2-3 days.
Minimizes operating costs thanks to the minimum need for foundation concrete in the area where it will be installed,
Robust and durable main chassis; It provides precise weighing by minimizing vibrations in long-lasting operation and measurements.

OPTIONAL ITEMS

🔸 Electrical picking robot

🔸 Stacking rack system with elevator

🔸 Stretch wrapping machine

🔸 Goods picking forklift

SPECIFICATIONS	TW-12	TW-20	TW-25	TW-36
Production Capacity	110 - 120 pallet/h	110 - 120 pallet/h	120 - 130 pallet/h	170 - 180 pallet/h
Control	Manuel	Manuel - PLC	Manuel - PLC	PLC
Easy Mould Change	-	Automatic	Automatic	Automatic
Hydraulic Oil Capacity	180 L	200 L	250 L	1200 L
Upper Vibration	1 x 0,55 Kw	2 x 0,55 Kw	2 x 0,55 Kw	2 x 0,55 Kw
Bottom Vibration	2 x 4 Kw	4 x 4 Kw	4 x 4 Kw	6 x 7,5 Kw
Total Power Used (Manuel)	44 Kw	61 Kw	79 Kw	-
Total Power Used (Semi Automatic)	65 Kw	82 Kw	100 Kw	120 Kw
Vibration Power	10 tons	20 tons	20 tons	30 tons
Wooden Pallet Used (Manuel)	900X600X30 mm	920x920x35 mm	1100x980x40 mm	-
Wooden Pallet Used (Automatic)	1000x600x30 mm	980x1000x35 mm	1200x980x40 mm	1400x1200x40 mm
Mixer Capacity	0,25 m3	0,5 m3	0,5 m3	0,75 m3
Max.Product Height	30 cm	30 cm	30 cm	30 cm
Min.Product Height	5 cm	5 cm	5 cm	5 cm
Machine Dimensions	1550x4500x2600 mm	1560x5200x2640 mm	1920x3230x2640 mm	2800x4800x3500 mm
Output Product Quantity (Hollow Block)	6500 (10x40x20) 4500 (15x40x20) 3500 (20x40x20)	13000 (10x40x20) 9000 (15x40x20) 7500 (20x40x20)	18000 (10x40x20) 12000 (15x40x20) 10000 (20x40x20)	25000 (10x40x20) 19000 (15x40x20) 14000 (20x40x20)
Output Product Quantity (Interlock Paver)	11000 (198x163)	18000 (198x163)	25000 (198x163)	40000 (198x163)
